SurveyCam High-Level Inspection System For External or Internal Projects

Getting “quality eyes on” high-level projects can be a difficult, time consuming and expensive project. The SurveyCam® inspection system combined with the SurveyCam® telescopic pole, gets you right to where you need to be – and see.

For instant access, along with the confidence and security of seeing what’s really going on, SurveyCam® is a great asset to your business.

UP CLOSE, INSTANT IMAGES: The SurveyCam® System takes high-level inspection to a new level. This camera provides crystal clear images, up to 100M* distance.

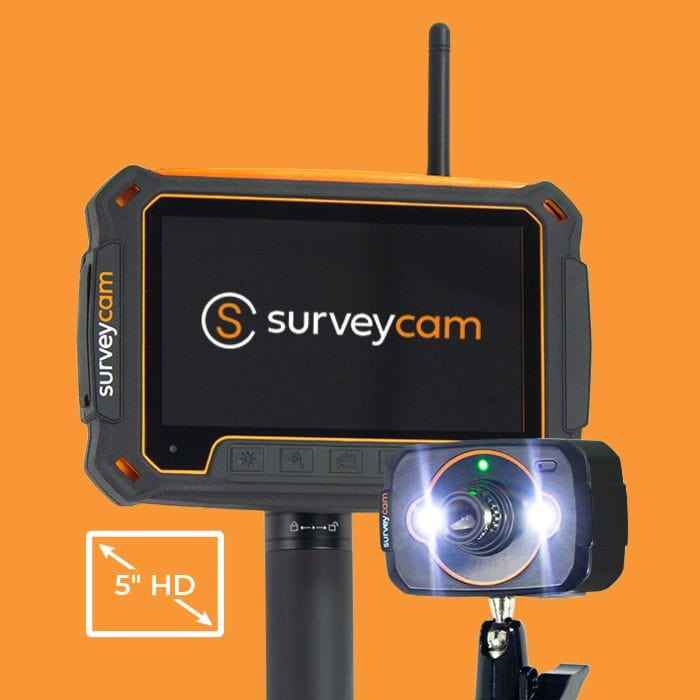

RELIABLE AND SECURE TRANSMISSION: This 5" HD monitor offers a secure and reliable signal transmission and features camera-mounted LED lights for exceptional visibility, all from the safety of the ground.

IDEAL FOR OUTDOOR AND INDOOR SURVEILLANCE: Made to be used in a variety of different environments including outdoor cleaning, warehouse goods inspection, security/law enforcement, pest control, estate agents, infrastructure surveys and more.

FOR USE WITH TELESCOPIC POLES: The SurveyCam® is compatible with our Telescopic Poles, available in two different height options. Constructed of high modulus carbon fibre, the poles are rigid, compact AND lightweight. Ideal for easy transport and storage.

SurveyCam® is a high-level inspection system, consisting of a paired Camera and Monitor with integral rechargeable batteries.  The set comes packaged in a protective photographic case complete with charging cables and pole fixtures.

SurveyCam® telescopic inspection poles are available in 32ft and 50ft.  Sold separately, please select the required height from the drop down menu.

The 5” HD TFT LCD screen puts you clearly in the picture.  View high contrast high-definition images in vibrant colours on the large screen.  For poorly lit locations, the camera mounted LEDs with a 2M range, will instantly light up the inspected area, whilst the generous (& removable) sunshade, shields the screen from glare and rain showers.  For close up confidence, the 3 x zoom feature allows you to focus on precise areas of interest.

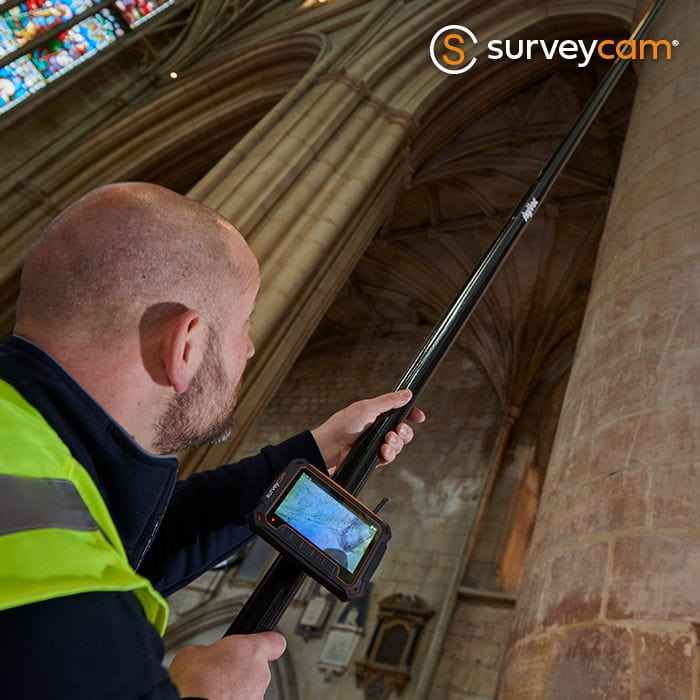

Ideal for complex and detailed inspection projects, surveyCam® gives you access to, and clear information about, high level projects - so you can make informed decisions on what you can see.

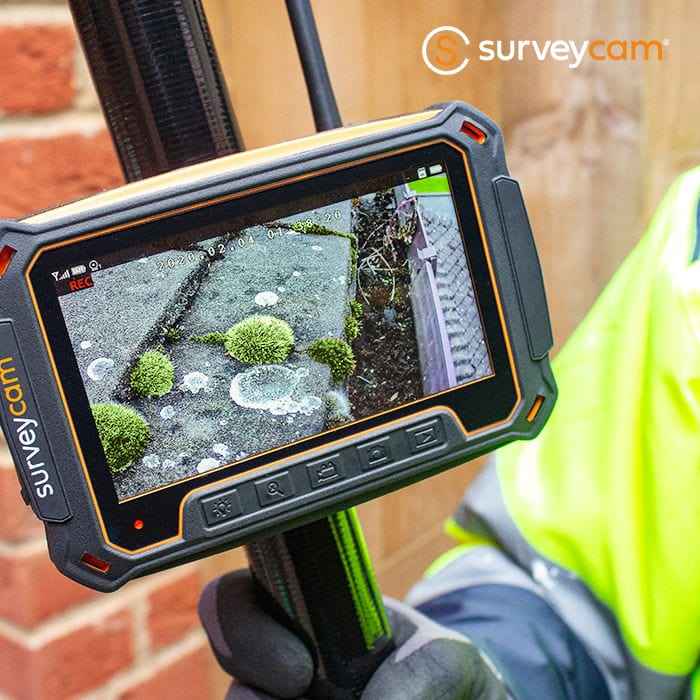

All “Seasons” Monitor:

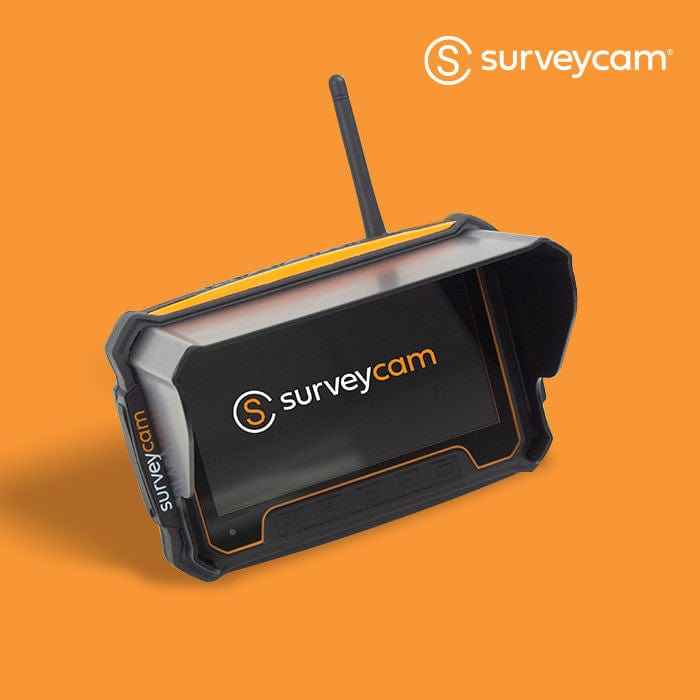

Engineered to cope with harsh working environments, the monitor is protected with a weatherproof case, with a detachable sunshade / rain hood along with an easy grip outer around the screen.  With raised function buttons with clear icons, you can keep capture images and videos whilst keeping your gloves on, making it ideal for those cold and damp gutter clearing projects.

Attach to the telescopic hand grip, or for hands free, eye-level viewing simply clamp Surveycam to your Inspection pole, or gutter vacuum suction pole.  Weighing in at just 255gms, the system is incredibly light weight with the integral rechargeable battery offering up to 3hrs of on-screen time.

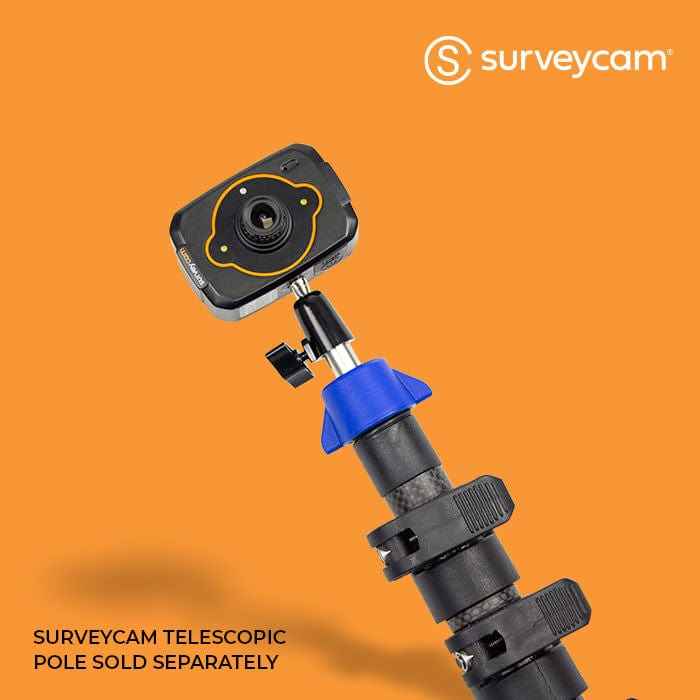

High-Level Camera:

For instant pictures transmitted up to a range of 100m*, simply turn on the camera and elevate it to the inspection site.  The manually adjustable ¼ Inch image sensor lens coupled with the 2 LED lights are perfect for up close detail, such as reading bar codes, making it ideal for stock checking.

Lightweight at just 65gms, the camera clamps neatly onto the neck of your tool holder, so that you can keep an eye on gutter clearing progress.

Secure, Reliable Connection – that Stays The Distance - up to 100M*

Losing signal when working at height is both frustrating and time consuming. Our suveyCam® inspection system combines a concentrated signal, with a locked and encrypted frequency transmission to ensure a constant, clear image transmission up to 100M (*unobstructed range).

• Encrypted transmission: The signal transmission between the camera and monitor is on an encoded frequency. This encryption between devices ensures a “locked” and inaccessible image transmission, making it ideal for sensitive and confidential high-level surveillance projects. This maximum level of security makes is perfectly suited to the police, military or those working on proprietary development at risk of hacking.

• Concentrated Signal: Utilising GFSK (Gaussian frequency-shift keying) modulation the system communicates via a narrower transmission bandwidth, than standard FSK, which results in a stronger and more stable signal. It is also less prone to interference from other devices such as mobile phones and more reliable than Wi-Fi. It also offers a greater working distance, with the system capable of 100M unobstructed range.

Customise and Accessorise to Suit Your Projects:

SurveyCam® comes with a range of Camera and Monitor fixings and accessories to cater to each project. So, whether you are outside in full sun, gutter cleaning, or inside a warehouse inspecting stock, you can get to where you need to see.

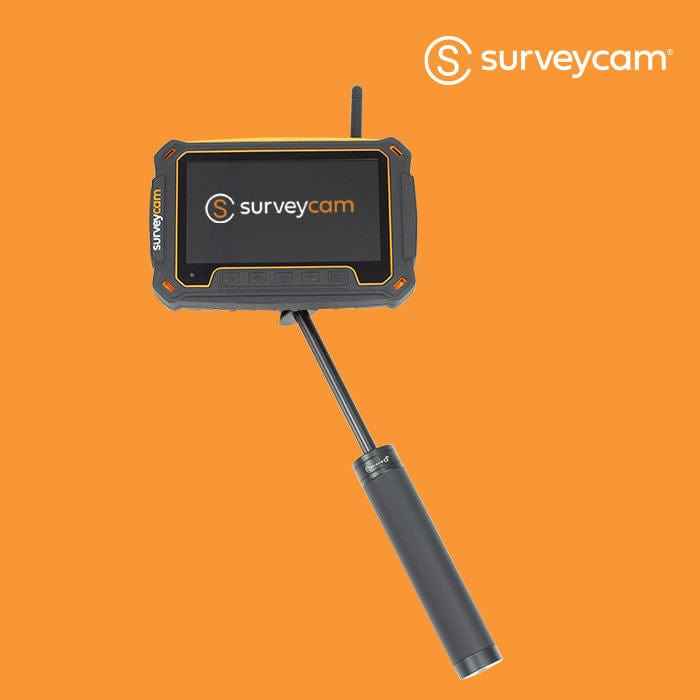

The monitor comes with a telescopic grip handle, or clamps to a suction pole or SurveyCam® telescopic inspection pole for hands free viewing. A deep, detachable sunshade ensures a picture perfect view, even in full sunshine.

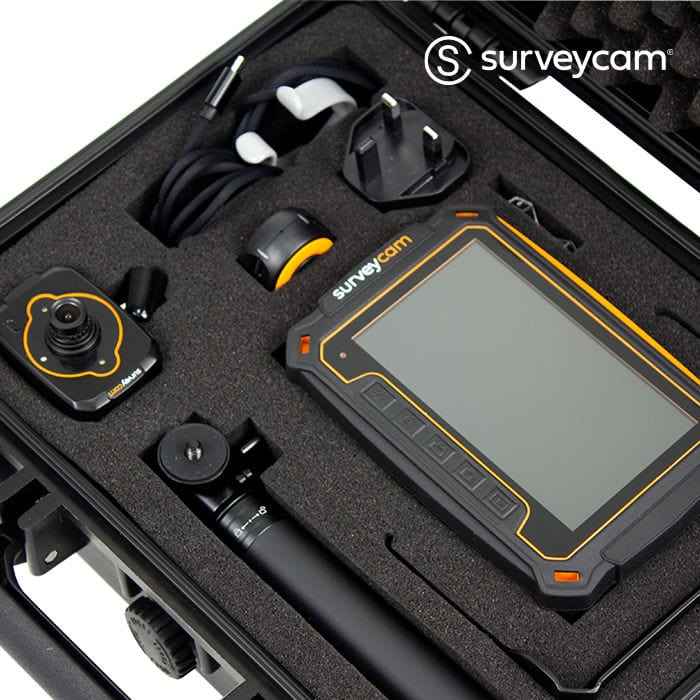

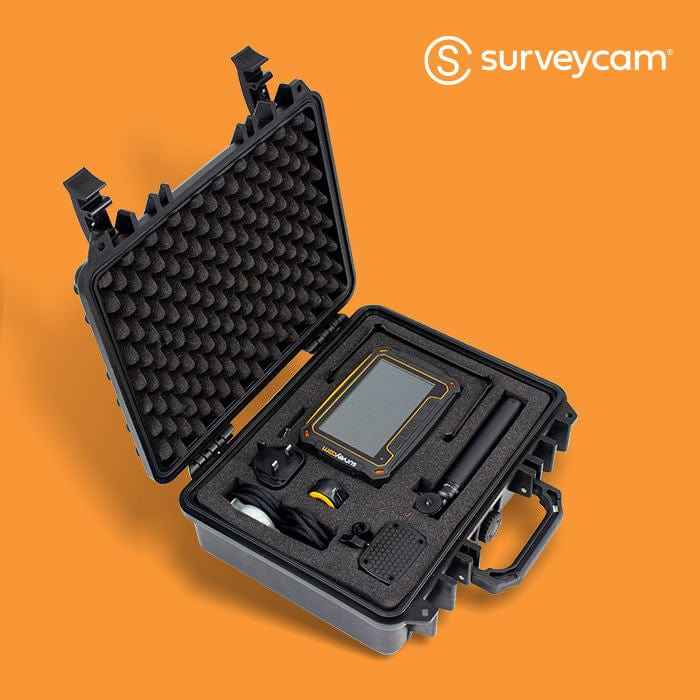

Packed and Protected, in One Tough Case.

Keeping your system safe in storage and transit, with a professional, weatherproof camera case. With a foam lined compartment for every item, it’s easy to see and secure the camera, monitor and accessories in place. Ready to grab and go as required.

• Watertight seal around lid
• Easy to open double throw latches
• Holes to each side for double padlocking

Reach Telescopic Heights up to 50FT:

Available in two height options, 32ft and 50ft, the SurveyCam® telescopic pole is incredibly lightweight and rigid owing to its high modulus carbon fibre construction. With a collapsed height of just 6ft and weighing in at 170gs per metre, the telescopic pole is convenient to transport and store. With up to 10 retracted height segments, the telescopic pole is quick and easy to assemble to height. Simply extend and lock each clamped segment in place.

• High Modulus Carbon Fibre Construction for Maximum stiffness / Minimum weight
• Collapsed height: 6ft / 1.82m
• 32ft weights 1.6kg with 6 Telescopic segments
• 50ft weights 2.7kg with 10 Telescopic segments

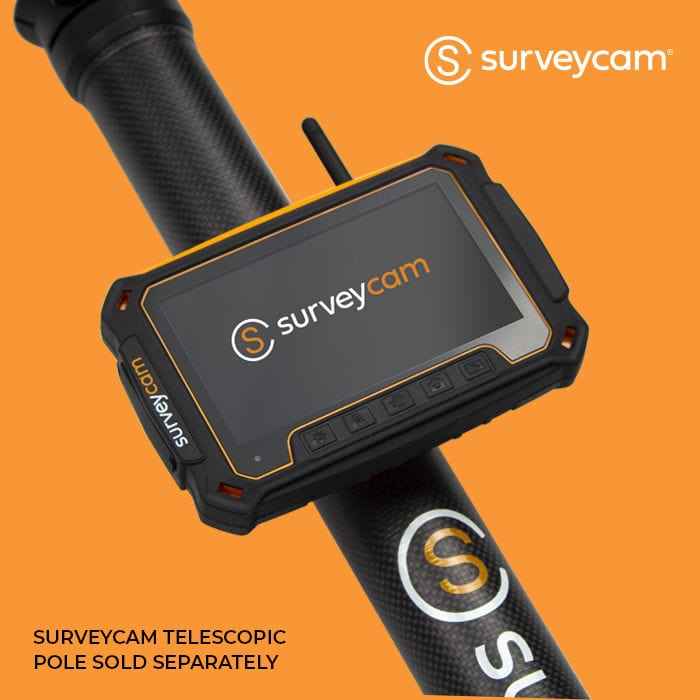

• SurveyCam® telescopic inspection pole sold separately - please select height required from the drop down menu to include.

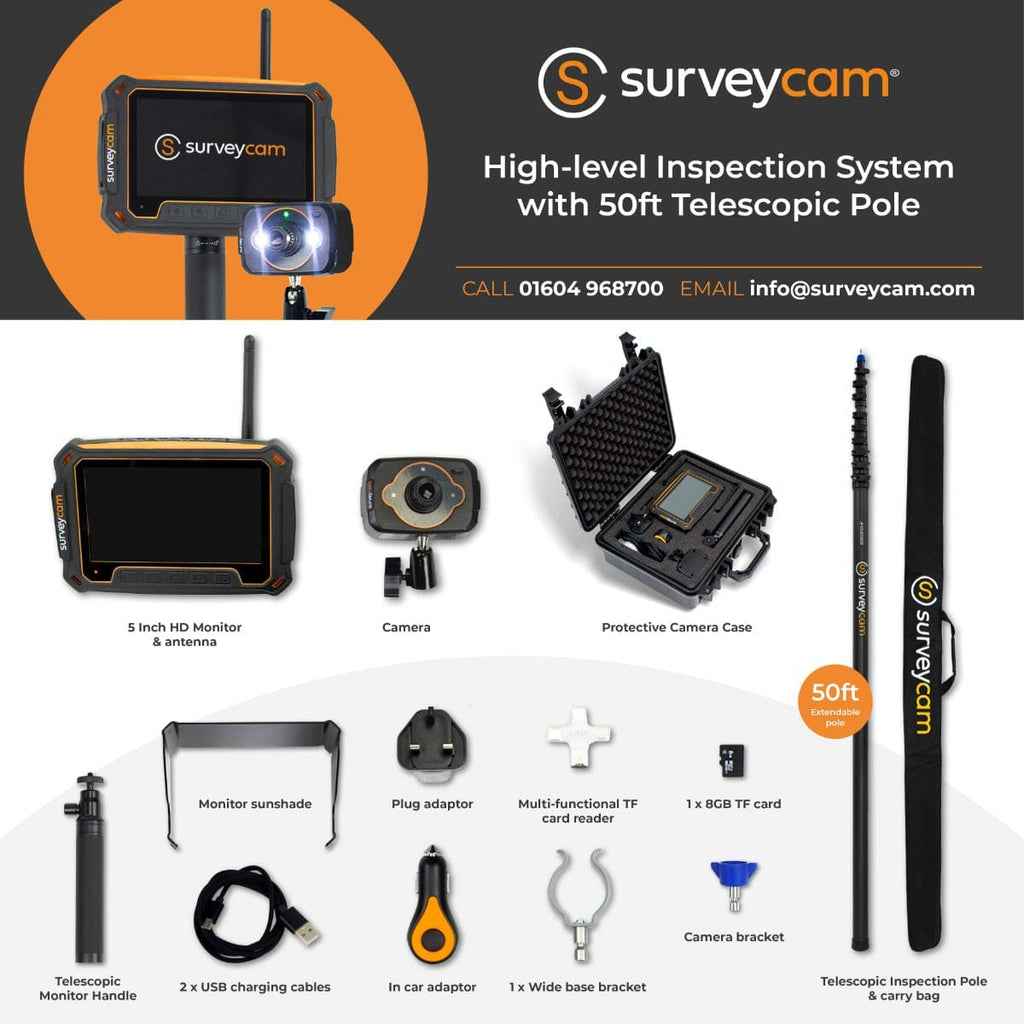

Included

SurveyCam® Inspection System:

5 Inch HD Monitor

• Antenna for Monitor
• 1 x 8GB TF card
• Sunshade for Monitor.

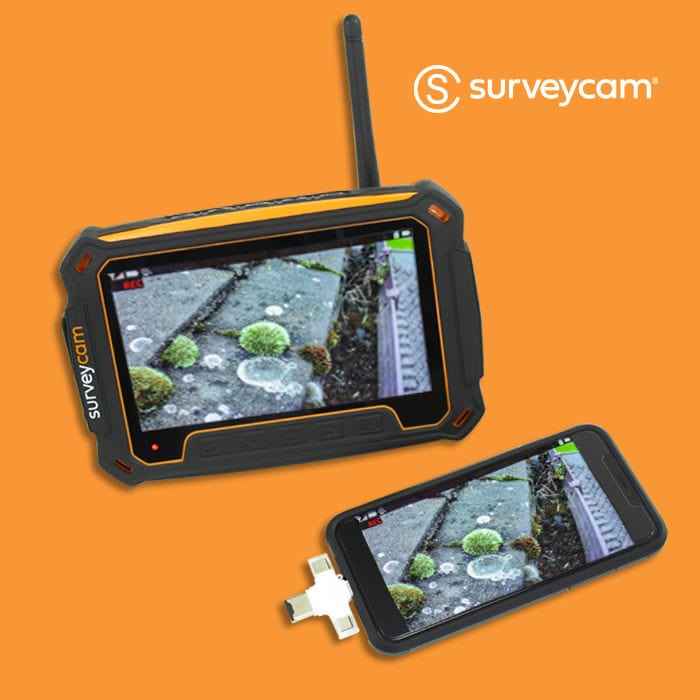

• Multi-Functional TF Card Reader
• 1 x wide base black bracket (monitor)
• Telescopic Hand Grip

Camera

• Camera Bracket
• Plug Adaptor
• In Car Adaptor
• 2 x USB  Charging Cables

Protective Camera case

• 33cm L x 28cm W x 12cm H
• Water resistant and lockable
• Egg crate foam to lid / Cut to shape foam sections in the base.

The SurveyCam® Telescopic Inspection Pole (32ft / 50ft) is not included as standard with the standalone SurveyCam system.

• Please select the height required from the drop down menu to include an inspection pole along with your camera system.

32ft SurveyCam® Telescopic Inspection Pole:

• Construction: Premium High Modulus Carbon Fibre
• Collapsed Height: 6FT
• Telescopic Sections: 6
• Weight: 1.6KG
• Supplied with a branded carry case.

50ft SurveyCam® Telescopic Inspection Pole:

• Construction: Premium High Modulus Carbon Fibre
• Collapsed Height: 6FT
• Telescopic Sections: 10
• Weight: 2.7KG
• Supplied with a branded carry case.

Specifications

SurveyCam® Monitor Specifications:

• Screen Size: 5 Inch TFT LCD
• Display Resolution: 1280x720
• Unobstructed Receive Range: 100 Metres
• Zoom: 　 3 levels
• Modulation Mode: GFSK
• Power Supply: 5V (VDC)
• Battery (integrated): 2500mAh
• Charge Time: 3 hours
• Working Time (full Charge): 3 Hours
• Memory: T-Flash Card
• Max.Memory Size: 64GB
• Picture Format: 1 x JPEG
• Video Format: 1280 x 720HD - MP4
• Picture/Video Resolution: 720 Pixels
• Operation Temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
• Dimensions: 150L x20D x 100H
• Weight: 255 Grammes
• Weather Proof Rating: IP64 for light showers

SurveyCam® Camera Specifications:

• Image Sensor: 1/4 Inch JX-H62
• Effective Pixels: 1280x720
• View Angle: 45°
• Transmission Frequency: Encrypted 2400~2483 MHz
• Modulation Mode:　 GFSK
• Unobstructed Effective Range: 100 Metres
• white LED light range: 2 Metres
• Power Supply: 5V DVC
• Battery (integrated): 1200mAh
• Charge Time: 2 Hours
• Working Time (full charge): 2.5 Hours (LED OFF）/ 2(LED ON) hours
• Operation Temperature: ℃/°F -10~+50℃ /+14~+122°F
• Dimensions: 60L x 40D x40H mm
• Weight: 65 Grammes
• Weather Proof Rating: IP64 for light showers

SurveyCam® Output:

• Video: 1280x720HD When filming for longer periods, videos are automatically saved as 10 Minute video files.   15 Minutes filming would be saved as 1 x 10 minute / 1 x 5 Minute videos.
• Images: 1MP


SurveyCam® Photograpic Case:

• Dimensions: 33cm L x 28cm W x 12cm H
• Watertight seal around lid
• Foam protected storage compartments
• Secure double throw latches
• Soft grip handle
• Holes on either edge for padlocking
• Injection Molded high quality Polypropylene

The SurveyCam® Telescopic Inspection Pole (32ft / 50ft) is not included as standard with the standalone SurveyCam system.

Please select the height required from the drop down menu to include an inspection pole to your camera system.

32ft SurveyCam® Telescopic Inspection Pole:

• Construction: Premium High Modulus Carbon Fibre
• Collapsed Height: 6FT
• Telescopic Sections: 6
• Weight: 1.6KG
• Supplied with a branded carry case.

50ft SurveyCam® Telescopic Inspection Pole:

• Construction: Premium High Modulus Carbon Fibre
• Collapsed Height: 6FT
• Telescopic Sections: 10
• Weight: 2.7KG
• Supplied with a branded carry case.
